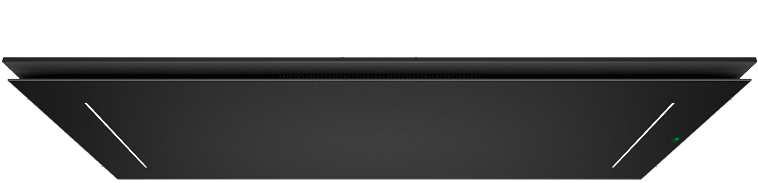

Ceiling fan 5DD 72557

5DD72557

A+ energy efficiency class
120cm width
Multi Control

The extractor fan hood and hob are intelligently linked. The extractor fan hood can be controlled separately using the hob control panel and
automatically adjusts the fan power to the heat generated. The intelligent light system can be used to individually regulate the colour temperature and intensity.
LED

The innovative LED lights of Blaupunkt extractor fan hoods ensure even more light on the hob.

Another ray of hope: the long-lasting lights consume an extremely low amount of energy.
Electronic control

The electronic control provides for a high and especially finely tunable fan output.

Voltage: 220 – 240 V
Total connected load: 173.4 W
Energy efficiency class: A+^*
Average power consumption: 42 kWh / year^*
Fan efficiency class: A^*
Light efficiency class: A^*
Grease filter efficiency class: C^*
Noise min. / max. normal level: 48 / 64 dB^*

Fan output max. normal level / Intensive level^*:

in extraction mode 566 m³/h / 703 m³/h
in circulation mode 413 m³/h / 519 m³/h

_{* According to EU Regulation no. 65 / 2014 / fan power according to EN 61591}

Black painted stainless steel and black glass
For ceiling installation above kitchen islands
Multi Control
Optional extraction or circulation mode (activated carbon filter required for circulation mode)
Electronic control
6-level fan power (5 power levels + 1 intensive level) controllable through Multi Control
Intensive levels with automatic reset
Powerful and quiet blower
Uniform, bright lighting with 2 × 4.2 W LED modules
Colour temperature: 4,000 K

Appliance dimensions: max. 16.1 × 120.0 × 55.0 cm

4251003108125

Metal grease filter, dishwasher-safe
Remote control

Installation instructions

Instructions-for-installation-and-use-5DD72557.pdf3 MB

Instruction manual

Instructions-for-installation-and-use-5DD72557.pdf 3 MB

Technical data sheet

Energy label

Technical drawing

Technical-drawing-5DD72557.tif 255 KB
