Fan module 5DA 46450

5DA46450

B energy efficiency class
52cm width
LED

The innovative LED lights of Blaupunkt extractor fan hoods ensure even more light on the hob.

Another ray of hope: the long-lasting lights consume an extremely low amount of energy.
Electronic control

The electronic control provides for a high and especially finely tunable fan output.

Voltage: 220 – 240 V
Total connected load: 252 W
Energy efficiency class: B^*
Average power consumption: 67.5 kWh / year^*
Fan efficiency class: B
Light efficiency class: A^*
Grease filter efficiency class: C^*
Noise min. / max. normal level: 54 / 66 dB^*

Fan output max. normal level / Intensive level^*:

in extraction mode 580 m³/h / 670 m³/h
in circulation mode 410 m³/h / 420 m³/h

_{* According to EU Regulation no. 65 / 2014 / fan power according to EN 61591}

Fan module with white glass

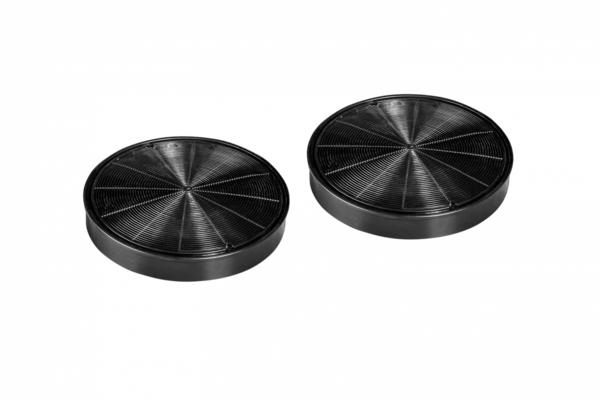

Optional extraction or circulation mode (activated carbon filter required for circulation mode)
Soft push buttons (3 power levels + 1 intensive level)
Intensive levels with automatic reset
High, fine-tunable fan power through electronic control
Edge suction
Uniform, bright lighting with 2 × 1 W LED lamp
Illuminance: 200 lux
Colour temperature: 4,000 K

Appliance dimensions, extraction: 33.75 × 52.2 × 28.6 cm
Appliance dimensions, circulation: 33.75 × 52.2 × 28.6 cm

4251003108286

Metal grease filter, dishwasher-safe

Installation instructions

Installation-instructions-5DA46450.pdf5 MB

Instruction manual

Instruction-manual-5DA46450.pdf 1 MB

Technical data sheet

Energy label

Technical drawing

Technical-drawing-5DA46450.tif 324 KB

5-Year Warranty

Durability and professional service – this promise is underlined by Blaupunkt with five years’ warranty* on all built-in appliances, sinks and taps.
